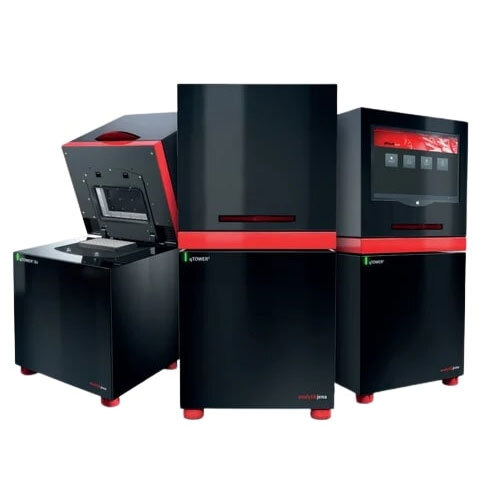

Quantitative PCR

Silver sample block with gold coating

Block capacity

96 x 0.2 ml tubes/ 96 well microplates/ 12 x 8 well strips, 0.2 ml

Sample volume

5 – 100 μl

Heating

8 °C/s

Cooling

6 °C/s

Temperature setting range

4 – 99 °C

Temperature uniformity

55 °C ± 0.15 °C after 15 s

Temperature control precision

± 0.1 °C

Gradient

12 column: 4 °C – 99 °C, Linear Gradient Tool

Max. / min. gradient

40 °C/ 0.1 °C

Lid temperature

30 °C – 110 °C

Contact pressure

30 kg, automated

Light source

4 longlife, high-power LEDs (RGBW)

Detector

High sensitive PMT (Photo Multiplier Tube)

Read-out time

6 s for 96 wells independent of the number of dyes

Color modules

12 color-, FRET- and protein modules,6 positions in the device

Configuration

Free configuration

Control

PC

Language

German, English, Chinese, Russian

Display

-

Operating system

Windows 7 or higher

Minimum requirement of PC

Intel Core 2 Duo, 2048 MB RAM, USB 2.0, Display resolution min. 1280 x 1024 pixel

Export function

Excel, *.csv, LIMS, qBase+, GeneIO, GenEx

Memory capacity

Not limited on PC or tablet

Weight

Approx.30 kg

Size (W x H x D)

275 mm x 585 mm x 275 mm

Interface

PC connection: USB,Tablet: USB for data transfer, barcode reader

Power supply

100 – 240 V

Power consumption

Max. 850 W

Noise emission

Max. 45 dB

Operation conditions

15 °C – 35 °C, 70% humidity, max. 2,000 m NN

Warranty

2 years warranty on device system,10 years long-term warranty on high performance optics
